ORBIT PRO KIT

Capture smooth orbiting camera shots from just about anywhere. The Pro Kit is our action ready, all in one Orbiting camera Dolly system that transforms a ceiling mounted home/studio set up to a take anywhere speed rail mounted one. It has all the features of the Studio kit plus bundles in 3 extra counterweights, D-Tap cable, V-mount adaptor, extra collar, 3 custom speed rail adaptors and an organized travel bag.

Key features

-Take orbit anywhere, you don’t need a ceiling to mount to.

-Controllable by IR Remote or Web based App

-Ideal for large studio sets with tall ceilings, or the great outdoors.

-Can get impossible shots over obstacles, rocky terrain, or shallow water.

-Includes travel safe Pro Bag, ideal for travel gigs or rental houses.

Note: This kit requires purchase of light stands, and 1-1/4” speed rail, sold separately. We do not sell light stands or speed rail, but have recommendations on our Third Party gear Page.

Base Kit Included

(1) Axibo Powered Stealth Motor.

- Internal 6700mAh battery.

- 8 hour run time.

- Max 10 RPM / Min 1 Rotation per 48 hours.

- Machined and welded motor shaft, vertical weight tested over 200 lbs.

(1) Ceiling Plate with hardware assembly. Mounts into Studs/ joists, or cement ceilings. Includes screws.

(1) Telescoping Down Rod. Attaches to ceiling Plate and to Orbit Motor with an adjustable hight of 27” - 46” . Ideal use for ceilings 8-12’

(2) Kondor Blue Arm joints. Anodized 6160-t6 aluminum, with arri rosette steel teeth.

(4) Anodized Black aluminum arm poles. (2) 24” and (2) 16 inch. Total span across when assembled 94”.

(2) Threaded end caps with 1/4-20 mounting for accessories or counter weights. Caps thread into arm poles.

(1) Dual Arm receiver. Includes bubble level for proper weight distribution.

(3) 1 lbs counter weights. 1/4-20 threaded, stainless steel construction.

(1) Ball Head to cold Shoe mount. Fits to normal DSLR or Mirrorless cameras such as Sony, Canon, Panasonic.

(1) 1/4-20 to Cold Shoe Mount. Mounts to any camera with 1/4-20 mount, and creates a quick release cold shoe.

(1) Bar Sleeve. 1/4-20 mount, attaches to ball head and camera.

(2) Hook and loop wall anchors for leveling down rod.

(2) 1/4-20 threaded loops. Used for attaching ratchet straps and straightening down rod, (if needed).

(2) Ratchet straps. 75 LBS max payload.

(1) Aluminum IR Remote control + APP (App release summer 2022)

Studio Kit Included

(1) Studio Ring Light

-5600k Daylight LEDS.

-Diffused and dimmable, CRI 97+ LEDS. Good on products and Skintones.

- Laser guide for finding perfect center of orbit.

-Internal 6700 mAh battery bank. USB-C quick charge or reverse charge to use as battery bank.

-7 hour battery life @ 50%v brightness. 3.5 hour battery life @ 50% brightness.

- 32 Step encoder for brightness, 5 step remote brightness.

-Tool holder + Magnetic remote holder

(1) Magnetic Focus Ball. Pull focus for yourself or use to set exposure with near 18% grey moon ball.

Pro Kit Included

(1) Pro Bag. Durable, travel safe padded bag.

(3) Outdoor brackets for Speedrail. Attaches to Light stand and USA schedule 40 1-1/4'“ Speedrail with OD 1.66. *

(3) 1 lbs counter weights. Additional weights, bringing a total kit counter weight to 6 lbs.

(1) Dual ball head to 1/4-20 thread. Attaches to

(1) Dual collar sleeve. Slide on the bar and attach additional camera, accessories, or counter weights.

(2) Hook and loop wall anchors for leveling down rod.

(2) 1/4-20 threaded loops. Used for attaching ratchet straps and straightening down rod, (if needed).

(2) Ratchet straps. 75 LBS max payload.

(1) V-mount Bar clamp and quick release. Attach a v-mount battery as a counter weight or to charge Orbit Motor or Light Ring.

(1) 10ft D-tap to D-tap Extension cable. Run the battery cable from one side to the other, using the battery as counter weight. *

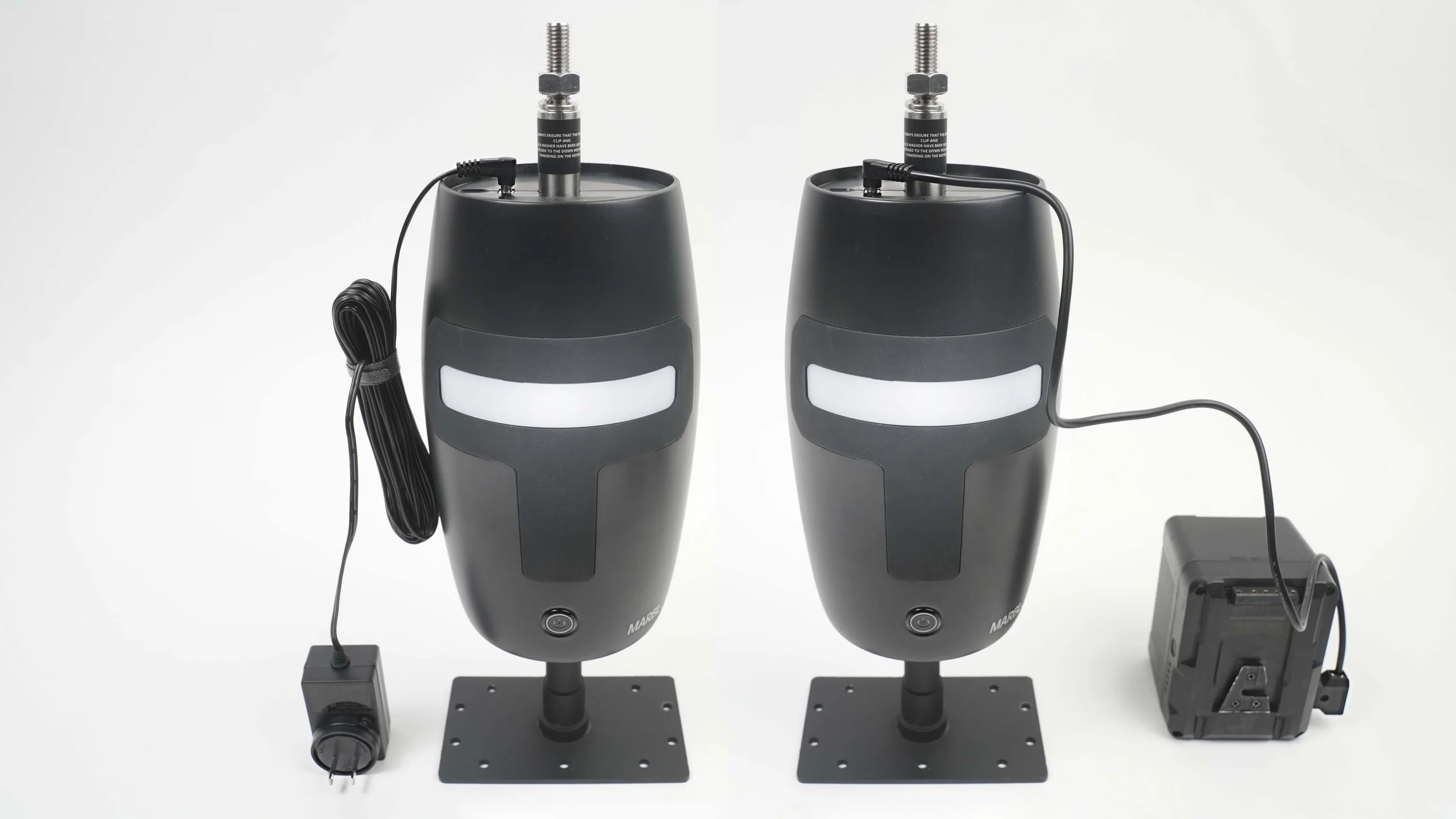

(1) D-tap to 12V power cable. Charge to Orbit Motor or Light Ring while you shoot, with this cable. *

(2) Velcro lens straps to support longer lenses.

(1) Light Ring Case

Motor Modes Explained

Product Mode, visor Green. Max speed, 10RPM. Very fast Orbits, great for slow motion shots.

Interview mode, visor Yellow. Slower than green mode, 1/25 RPM, ideal for interviews or for slow product shots with long lenses.

Time lapse mode, visor Teal. Very slow gear, 1 rotation every 48 hours, great for shadows play time lapse or plants growing etc..

Stop Motion Mode, visor Blue. Orbit only moves when given instructions to do so, can move by .5,1,2,5,10,or 15 degrees

Wiper Mode, visor blinks any color - Orbit jogs back and forth between two positions. Ideal for interviews with long lenses and low speeds.

VFX Mode. Orbit has built in speaker, and will blip exactly as each orbit concludes. Ideal for stacking and performing movie magic.

V-mount batteries are NOT included in any package. Orbit base, Studio, and Pro may require installation into a ceiling stud. For best results, use a stud finder and screw gun. These are NOT included as well. Outdoor mounting requires appropriately sized overhead stand, a dual speed rail assembly, and additional safety equipment, which are NOT included.
